Start an enquiry Diagnosis / Electrical faults
Methodical electrical fault finding for homes, rental properties and smaller businesses, with the cause explained clearly before repair options are agreed.
Based in Beccles, serving Norwich and nearby Norfolk and Suffolk.
Discuss this serviceWhat to expect
Fault finding can help with recurring RCD or circuit-breaker trips, a circuit that has stopped working, flickering lights, hot or damaged accessories, intermittent power and faults that appear when particular equipment is used. If there is smoke, a burning smell, exposed live parts or evidence of electric shock, stop using the affected equipment and isolate it if this can be done safely.
The visit starts with the fault history and any recent changes. Visual checks and appropriate electrical tests are then used to narrow the problem from the supply or protective device to a circuit, accessory, cable or connected item. Testing is selected for the installation and carried out with safe isolation wherever practicable.
Some faults only occur under particular loads, weather conditions or after equipment has been running. The first visit may identify the likely area without reproducing the fault. Access restrictions, concealed wiring and equipment that cannot be safely isolated are explained, together with the most useful next step.
Where a straightforward repair is possible and agreed, it may be completed during the visit. More involved work is scoped separately. If the cause cannot be confirmed in the available time, you will still receive a clear explanation of what has been ruled out, what remains to be tested and whether any temporary isolation is necessary.
Project photography
At this small commercial site, failed pond electrics were traced to a buried enclosure that was unsuitable for the environment. Opening the enclosure revealed water ingress and a burnt terminal—the hidden cause behind the loss of supply.

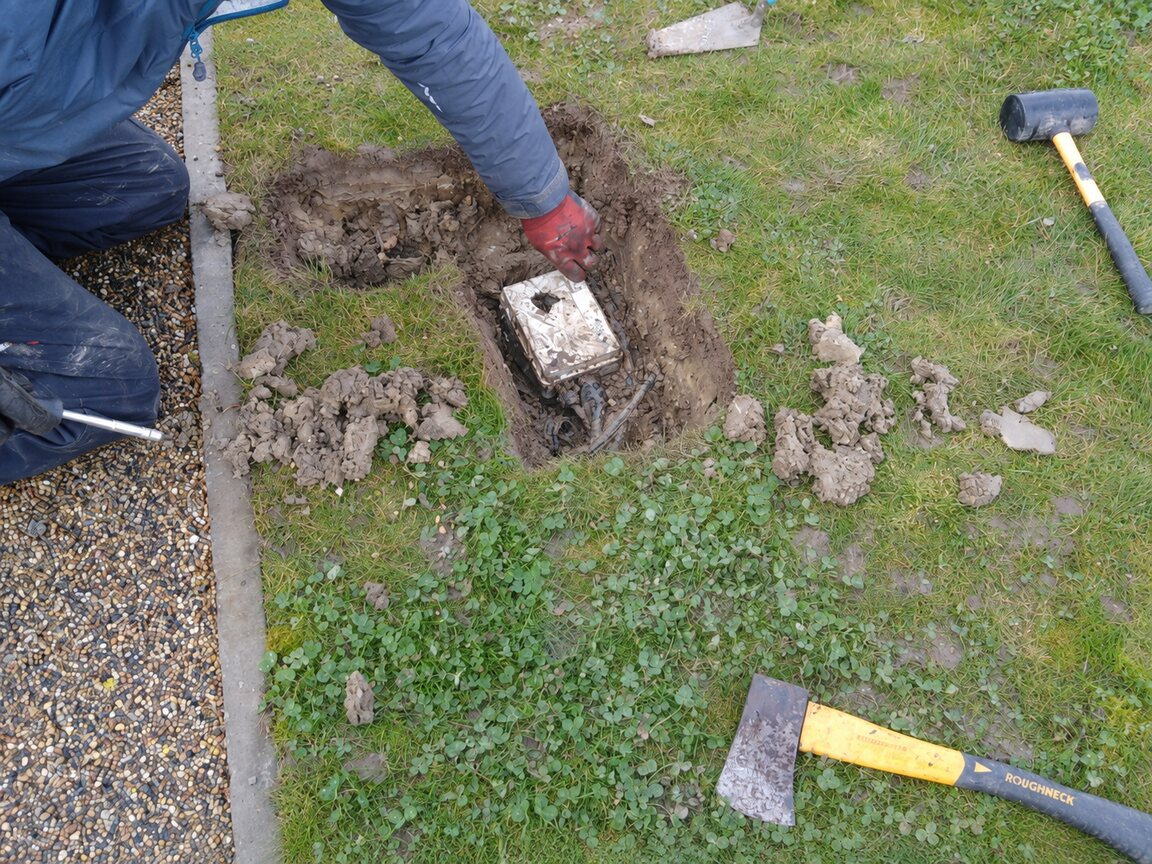

The concealed enclosure was excavated after the pond electrics failed at a small commercial site.
Fault location identified

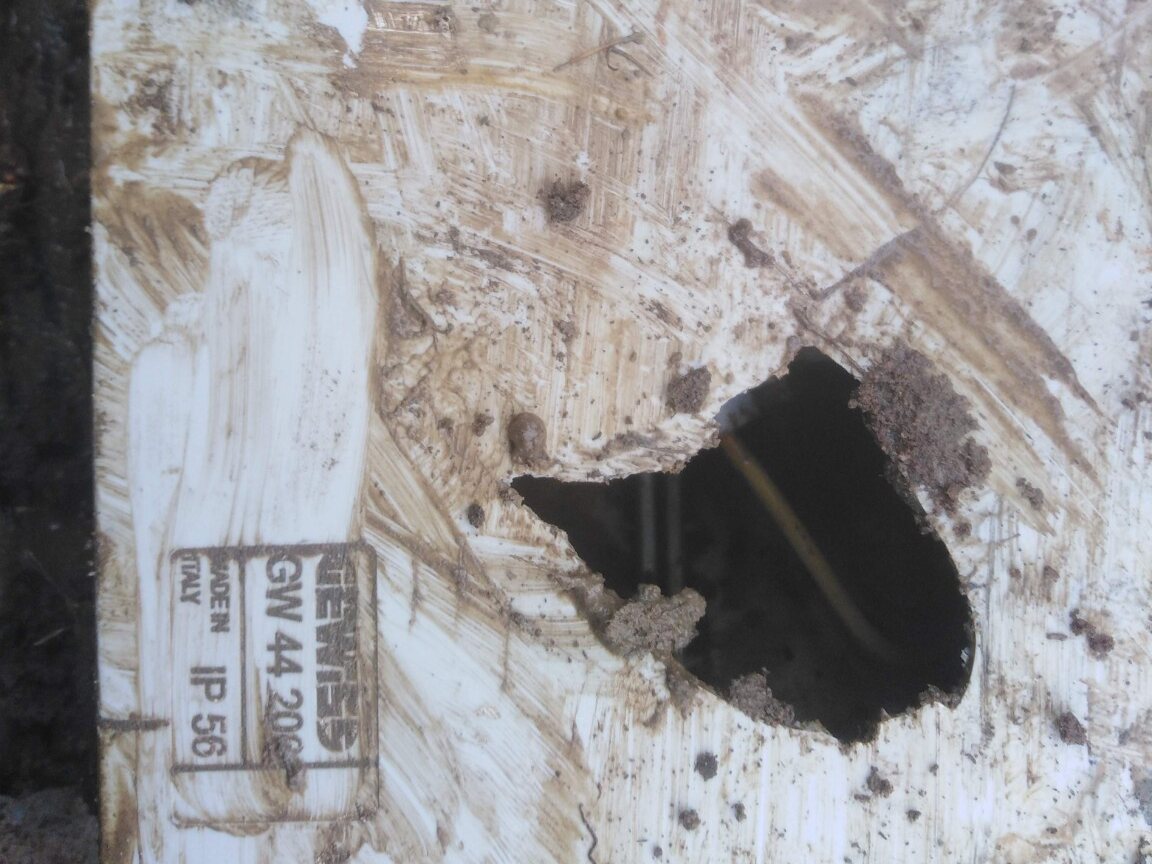

The enclosure had been buried in wet ground despite not being suitable for burial or the level of water exposure at the location.
Installation defect exposed

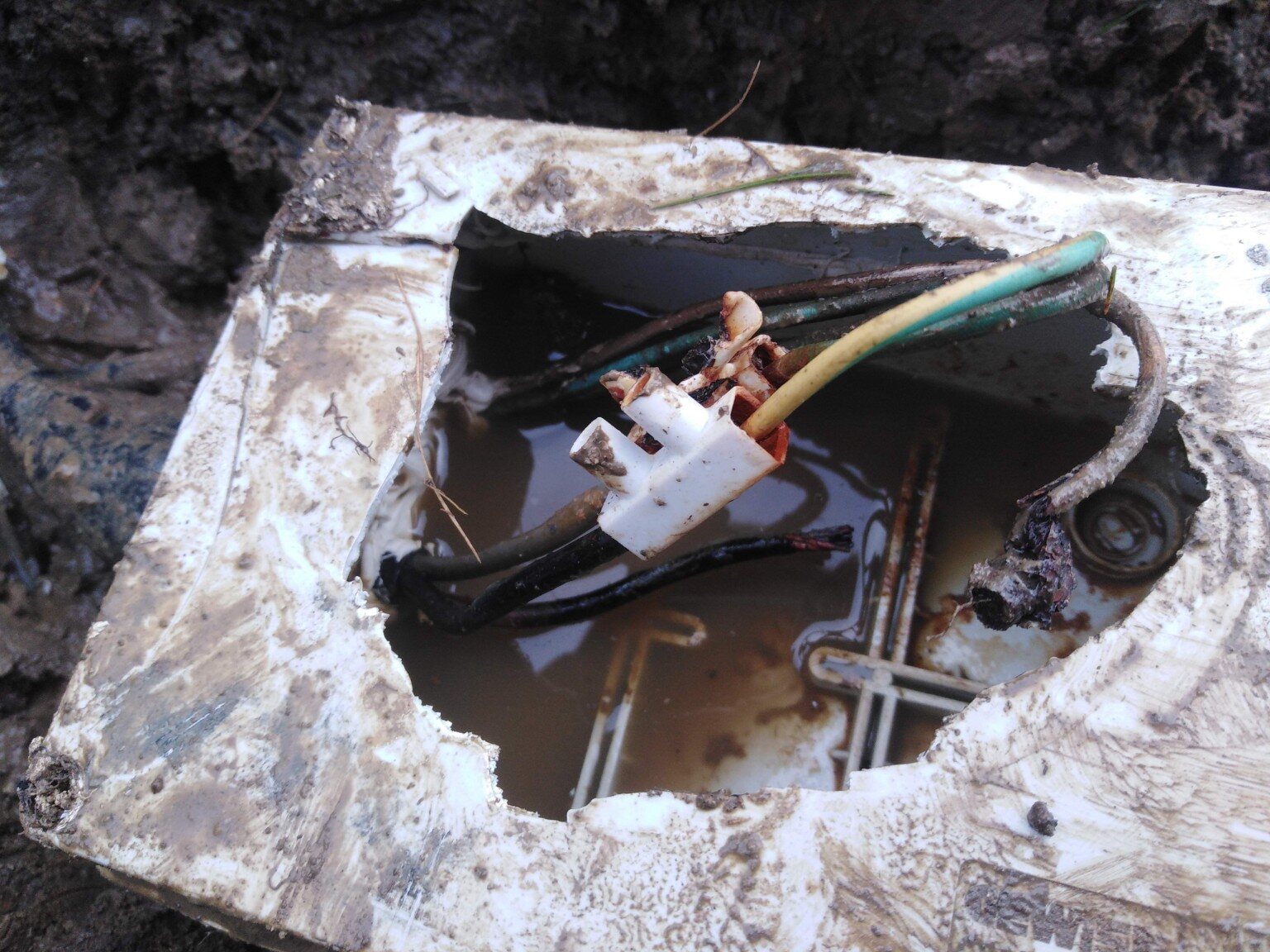

Water ingress and a burnt terminal were found inside the concealed junction box, confirming the cause of the pond-electrics failure.
Cause confirmedCommon questions
Repeated tripping can be caused by a faulty appliance, damaged wiring, moisture, a circuit fault or several smaller leakage currents adding together. Resetting it repeatedly is not a diagnosis; the circuit and connected equipment need to be tested methodically.
Many faults can be identified during an initial visit, but intermittent problems, concealed damage and faults affected by weather or operating conditions can take longer. The findings and next step will be explained before further time or work is agreed.
A suitable minor repair may be completed if the cause is confirmed, the required part is available and you approve the work. Larger repairs or alterations are quoted separately.
Note when the fault occurs, which breaker operates, what was switched on at the time, whether it changes in wet weather and any work completed shortly before the problem began. Photographs of the consumer unit or visible damage can also help with planning.
Arrange a visit
Based in Beccles, with regular coverage across Beccles, Norwich, Bungay, Lowestoft, Southwold, Great Yarmouth, Diss and the towns and villages between them.
